PhytoMAX-4 Features
Unparalleled Yield and Quality
PhytoMAX-4 lights are designed to grow the highest-quality and highest-quantity harvests. Rather than striving for the highest-possible photons per watt, PhytoMAX-4 is designed to give the highest yield per watt while maximizing terpenes, pigments and cannibinoid production.
Experience
Black Dog has been perfecting grow lights and supporting our customers since 2010- we’re among the oldest LED grow light manufacturers still in existence.
Customer Support
We’ve grown thousands of different kinds of plants with our lights ourselves, and our customer support is second-to-none, ranging from lighting questions to garden issues. If you’re growing 4 plants or 40,000 we’ve got the experience to help.
Dimmable
Dimmable from 15% – 100% with industry-standard 0-10V dimming controllers.
Reliable Active Cooling
PhytoMAX-4 increases efficiency and maximizes lifespan by actively cooling the LEDs. Cooler LEDs run more efficiently and have a longer lifespan, especially for the specialty UV and violet LEDs we use. While fans are a moving part, we’ve never had one fail in tens of thousands of lights over the past 13 years, plus our patented design includes multiple redundant fans. Even if one were to fail, your light will keep running just fine.
Designed and Assembled in Colorado
We utilize only the highest-quality parts and have been perfecting the PhytoMAX design for over 8 years- these lights are built to last!
Hanging Hardware Included

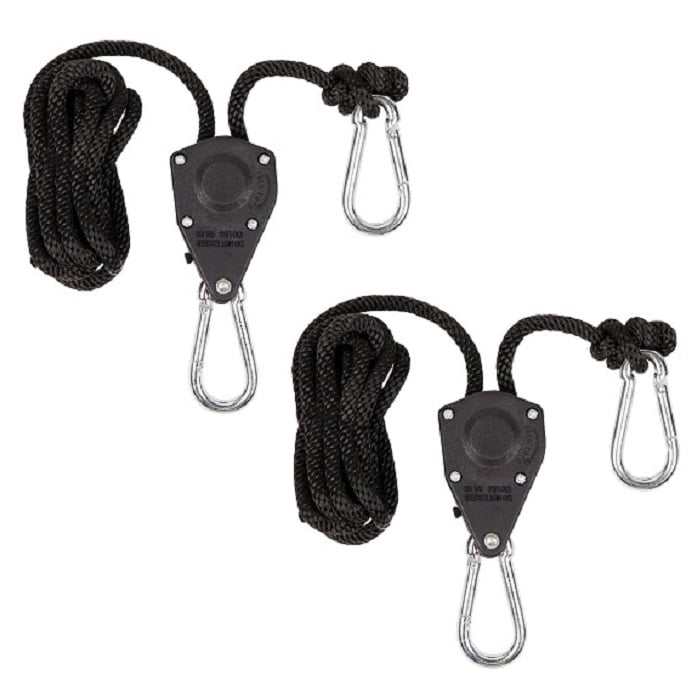

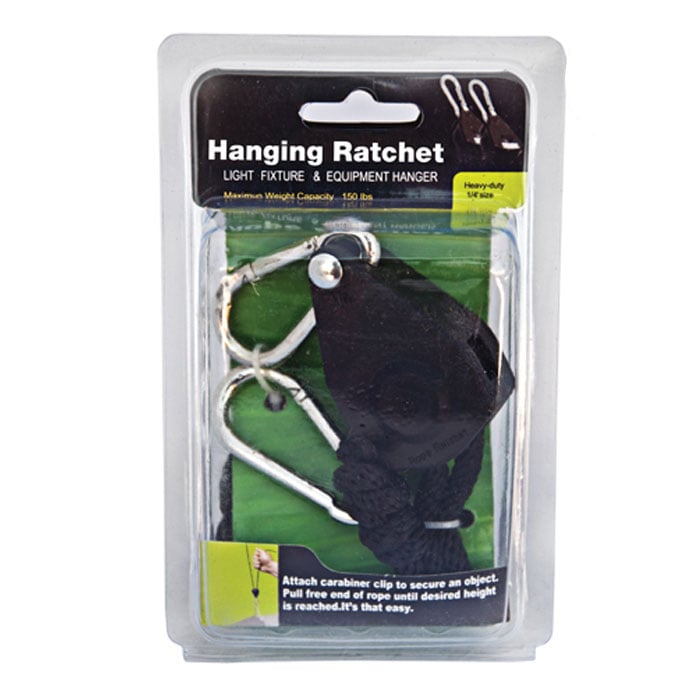

A pair of V-hooks and ratcheting rope hangers are included with every light.
PhytoMAX-4 2S Specifications
| Photon Flux (μmol/s) |
|---|
PBAR
280-800nm | UV
280-400nm | PAR
400-700nm | IR
700-800nm |
| 266 | 8 | 238 | 20 |
| Dimming | 0-10V, 15-100% |
|---|
| Dimensions | 8.5″ x 8.5″ x 4.5″22 x 22 x 11 cm |
|---|
| Weight | 9lb4.1kg |
|---|
| Power | 125 Watts |
|---|
| Certifications | UL 1598, UL 8800, ETL, CE, FCC, RoHS |
|---|
| Mean Time Before Failure | > 70,000 hours |
|---|
| Number of LEDs | 56 |
|---|
| Amp Draw | 1.25 @ 100V
1.04 @ 120V
0.6 @ 208V
0.54 @ 230V
0.52 @ 240V
0.45 @ 277V (SC model only)
0.36 @ 347V (SX model only) |
|---|
| Included Power Cord Length | 8 ft2.4 meters |
|---|
| Power Cord Options | NEMA 5-15, NEMA 6-15, NEMA 7-15 (SC model only), Pigtails |
|---|
| AC Voltage Range | SP Model: 100-250V (50 / 60 Hz)
SC Model: 100-277V (50 / 60 Hz)
SX Model (special order): 347V |
|---|
| Power Factor | 0.99 |
|---|
| Operation Ambient Temperature Range | -4 to 104 °F-20 to 40 °C |
|---|
| BTU | 426 |
|---|
| Fans Expected Life | > 70,000 hours |
|---|
| Warranty | 5 Years |
|---|
SP versus SC Models
The only difference between the SP and SC models is the power cord and the voltage it can handle.
| SP model IEC power cord: | SC model locking, water-tight power cord: |
 |  |
- Rated for 100-250 Volts
- Not recommended for greenhouse use
| - Rated for 100-277 Volts
- Locking, water-tight connection
|
